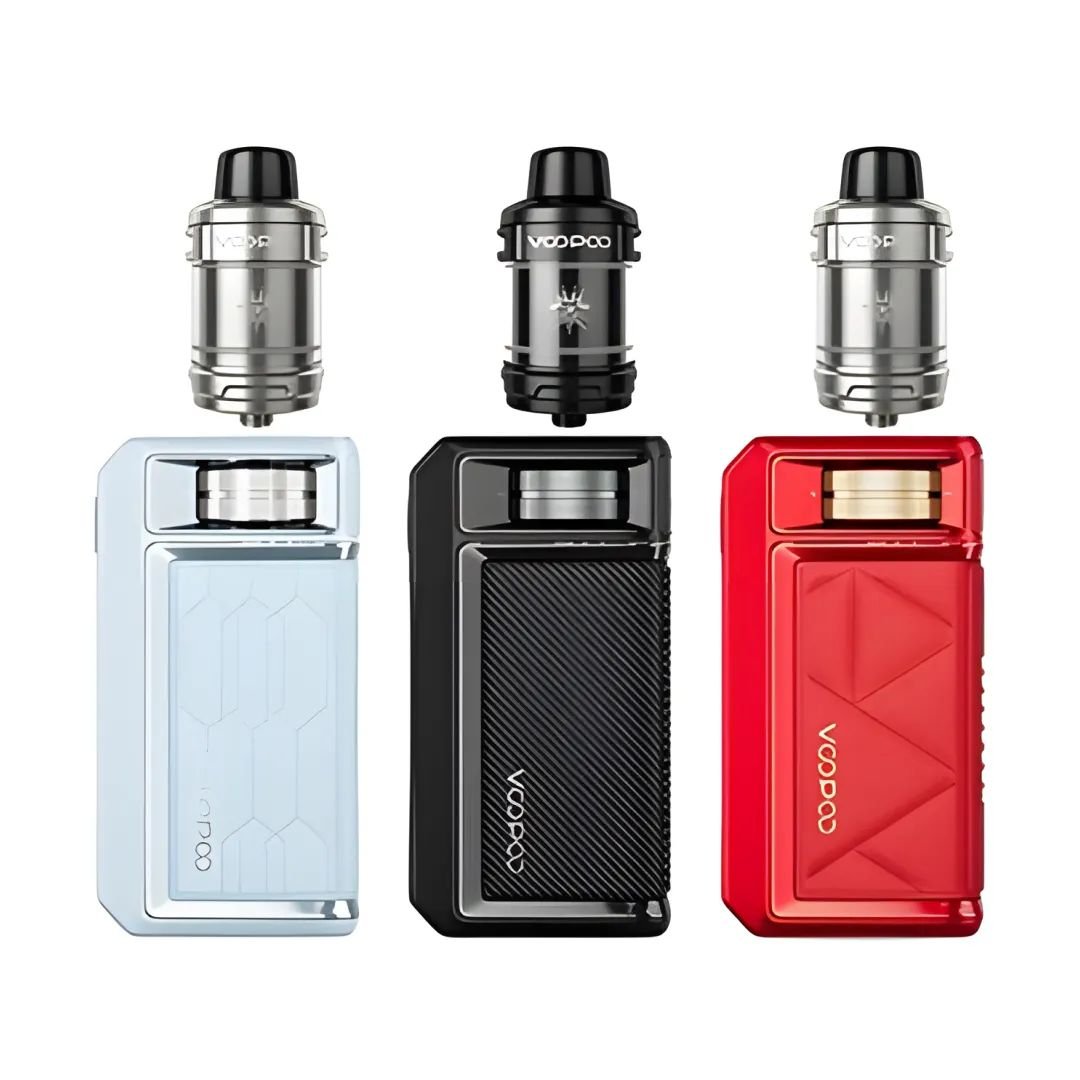

VOOPOO DRAG 6 Vape Kit
The VOOPOO DRAG 6 Vape Kit is a high-performance vaping device built around the advanced GENE TT 3.0 chipset, a massive 4400mAh built-in battery and an adjustable 5–220W output range.
Featuring a large 1.66″ TFT colour display, Precision Control Wheel, capacitive unlocking system and the versatile PnP X coil platform, the DRAG 6 provides extensive control for both DTL and MTL vaping.
4400mAh Built-In Battery
Unlike earlier DRAG models that use removable batteries, the DRAG 6 features an integrated 4400mAh battery system, consisting of two built-in 2200mAh cells.
The integrated battery design is engineered to provide stable high-power output while removing the need to purchase separate external batteries.
Powerful 5–220W Output
The DRAG 6 provides an impressive adjustable output range of:
5W – 220W
This gives users extensive control over power delivery and allows the device to work with the wide range of resistance options available through the PnP X platform.
GENE TT 3.0 Chipset
At the heart of the DRAG 6 is VOOPOO’s upgraded GENE TT 3.0 chipset, designed to provide faster response, stable power delivery and intelligent performance management.
Three main vaping modes are available:
- SMART Mode – automatically selects suitable power for the installed coil
- RBA Mode – provides manual adjustment from 5W to 220W
- TC-TCR Mode – temperature control for compatible Ni200, Titanium, SS316 and SS430 coils
1.66″ TFT Colour Display
The large 1.66-inch TFT screen provides a clear view of essential vaping information.
The interface also includes three selectable themes, allowing users to customise the appearance of the display.
Precision Control Wheel
The DRAG 6 introduces a Precision Control Wheel for smooth and intuitive wattage adjustment.
Rotating the wheel allows power and other settings to be changed without relying entirely on conventional adjustment buttons.
Multiple Unlocking Options
The DRAG 6 provides three different locking and unlocking options:
- Button Lock/Unlock
- Capacitive Touch Unlock
- Always Unlocked
The capacitive sensor can automatically unlock the controls while the device is being held and lock them when released, helping reduce accidental operation.
UFORCE-X Tank / Tank II
The standard DRAG 6 is paired with the upgraded UFORCE-X Tank II, featuring VOOPOO’s Golden Triangle airflow structure, top filling and adjustable airflow.
For the UK/TPD package, VOOPOO officially lists the 2ml UFORCE-X Tank (PnP X).
2ml Tank – UK/TPD
The UK/TPD version has a 2ml e-liquid capacity.
It uses a convenient top-fill design and includes a spare 2ml glass container.
PnP X Coil Platform
The DRAG 6 is compatible with the complete VOOPOO PnP X coil platform, providing options for DTL, RDL and MTL vaping.
Compatible PnP X coils include:
- 0.15Ω – DTL, 60–80W
- 0.2Ω – DTL, 40–60W
- 0.3Ω – DTL/RDL, 32–40W
- 0.45Ω – RDL, 25–32W
- 0.6Ω – MTL/RDL, 18–23W
- 0.8Ω – MTL, 12–16W
- 1.0Ω – MTL, 10–13W
The kit includes 0.15Ω and 0.3Ω PnP X coils.
Precision Airflow Control
The tank incorporates a rotary airflow adjustment dial, allowing airflow to be precisely adjusted according to the installed coil and preferred vaping style.
VOOPOO’s Golden Triangle airflow structure is designed to provide smoother airflow and efficient atomisation.
USB Type-C 3A Charging
The large built-in battery supports:
USB Type-C 5V/3A charging
This provides faster charging for the high-capacity 4400mAh battery.
Six Safety Protections
The GENE TT 3.0 system provides six built-in safety protections:
- 8-second overtime protection
- Short-circuit protection
- Overcharge protection
- Output over-current protection
- Low-battery protection
- Overheating protection
Specifications
- Brand: VOOPOO
- Model: DRAG 6
- Battery: 4400mAh Built-In (2200mAh × 2)
- Output Power: 5–220W
- Maximum Output Voltage: 8.4V
- Chipset: GENE TT 3.0
- Display: 1.66″ TFT Colour Screen
- Modes: SMART / RBA / TC-TCR
- Resistance Range: 0.05–3.0Ω
- Tank Capacity: 2ml UK/TPD
- Coil Platform: PnP X
- Included Coils: 0.15Ω & 0.3Ω
- Filling: Top Fill
- Airflow: Adjustable
- Charging: USB Type-C 5V/3A
- Device Material: Zinc Alloy
- Tank Material: Stainless Steel + Glass
- TPD Weight: Approx. 294g
What’s Included – UK/TPD Version
- 1 × VOOPOO DRAG 6 Device – 4400mAh
- 1 × UFORCE-X Tank (PnP X) – 2ml
- 1 × PnP X 0.15Ω Coil
- 1 × PnP X 0.3Ω Coil
- 1 × Spare Glass Container – 2ml
- 1 × Silicone Rubber Pack
- 1 × PnP X Platform Card
- 1 × USB Type-C Cable
- 1 × User Manual
Please Note: The standard version is supplied with the 5ml UFORCE-X Tank II, while VOOPOO’s official TPD package uses the 2ml UFORCE-X Tank (PnP X).
